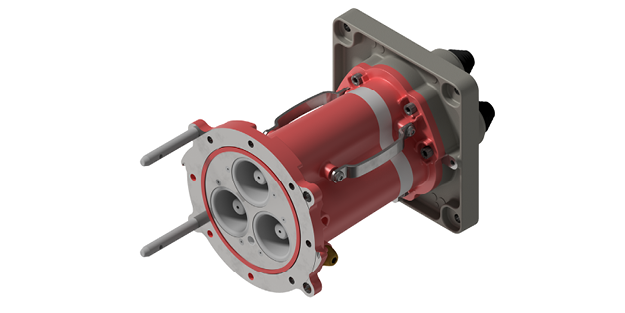

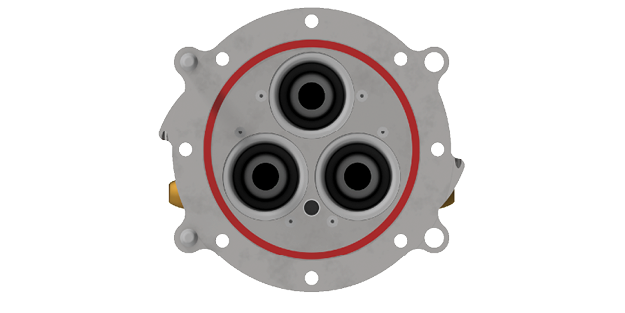

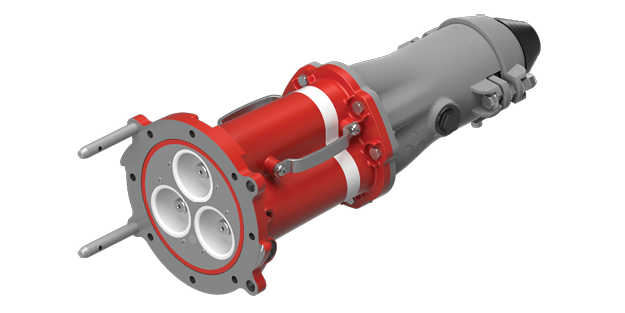

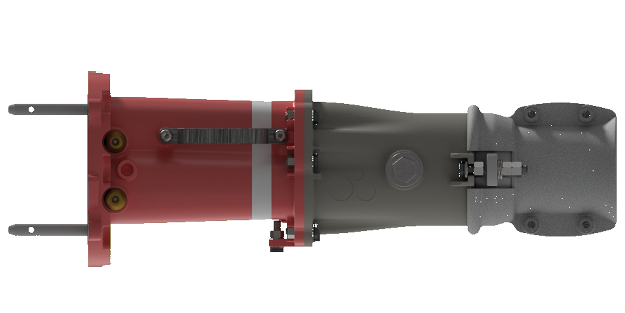

Ex118BSS Range | 11,000 Volts | 800 Amp | Flameproof Couplers

Rated for 800 amps with an operating voltage of 11,000 volts, the Ex118BSS has benefited from AusProof’s drive to continuously improve and innovate.

Ex-certified and with a rating of IP66, the Ex118BSS is suitable for use underground operational sites, and pumps and tunnelling projects, though this coupler can also be used in metalliferous sites if a higher level of durability is required. Each component of the Ex118BSS has been researched by AusProof’s Research and Development team to ensure that all parts work together to create a high quality, reliable and safe product. The design of the Ex118BSS allows for this coupler to have its gland tensioned at any time, without the need to remove components. It is also more resistant to damage on its flameproof paths.

Contact us

  • Features

    • IP66 rating
    • Pilots protection
    • Solid face and body casting
    • Higher MPa Stainless Steel material
    • More resistant to damage on flameproof paths
    • Tensions the gland without removing the clamp
    • Detachable Adaptor Flange
    • Handles
    • All air expelled on joining
    • Silicon seal for face
    • Full Phase to Phase Segregation with Earth
    • Arc extinguishing Phase Insulators
    • Genderless design
  • Accessories

    • LED Live Line indicator
    • Silicon Phase Connectors
    • Adaptor – Gear Mount
    • Cast Protection Cover
    • Crimp Contacts
    • Gland – Armoured
    • Gland – Unarmoured
    • Insulated End Cover
    • Slide Hammer
    • Coupling Tool
    • CAT Skid

Technical Information

  • Specs

    Volts 11,000
    Amp 800
    LOA (mm) 690
    Weight (KG) 30
    Material Stainless steel
    Volume (Litres) 4.0



    Download Product Dimensions

    Download Product Solids

    Back

  • Test Results

    Manufactured to AS/NZS 1300:2009
    AS/NZS 60079.0:2008
    AS/NZS 60079.1:2008
    Through Fault Current at 10 minute intervals 3 Tests of 20kA for 0.3 second
    1 Test of 20kA for 1.0 second
    AC HV Withstand 24kV for one minute
    Temperature Rise 800 amp for 5 hours with stable temperature within percentage of ambient temperature
    Ingress Protection IP66
