PS (Plug Small) Range | Stainless Steel Restrained Plugs and Receptacles

Ex-certified and fully compliant to AS/NZS1299, the PS Range offers 150A plugs and receptacles with operating voltages of 660V and 1,100V.

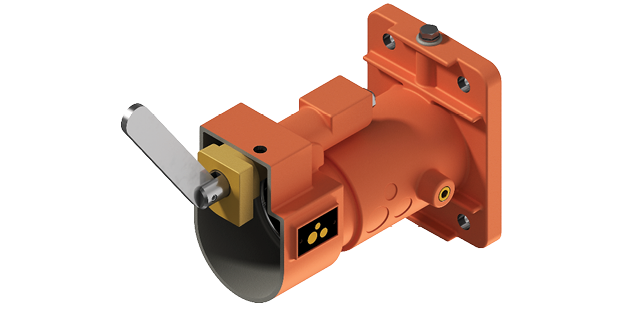

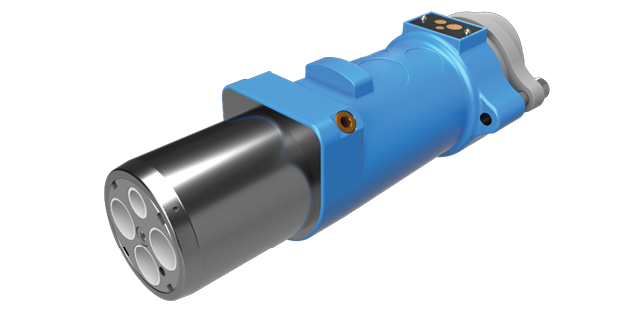

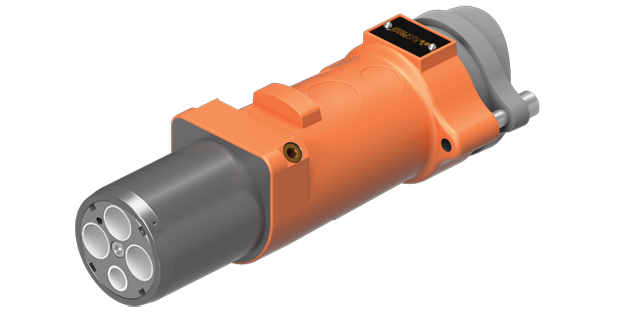

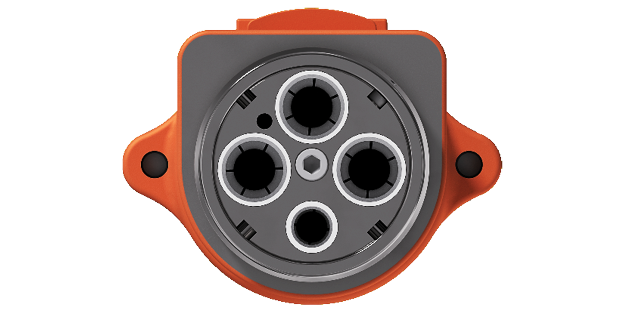

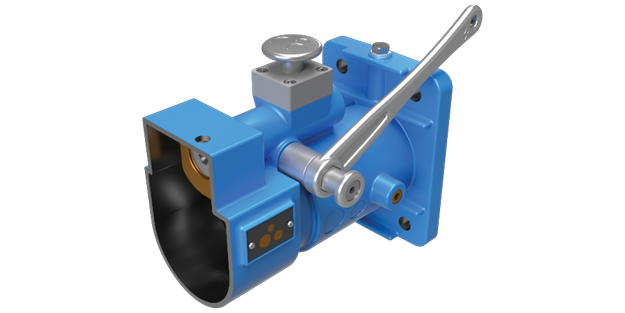

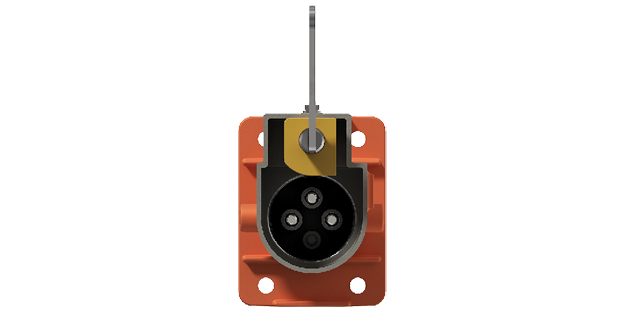

Plugs and receptacles in the PS Range are suitable for use in mining, tunnelling and commercial applications, including Group 1 hazardous environments. In the event of flamepath damage, the outer body casting of PS plugs can be replaced on-site, even underground, with no specialised training or cable termination required. The outer body casting can also be ordered separately. Jack-In Screw and Quick Release options are available for PS receptacles, with Back-to-Back (B2B) and Receptacle Gland Bracket (RGB) assemblies offering both types of releases.

Contact us

  • Features

    • Quick Release
    • Single piece contacts to prevent hot joints
    • Easy termination
    • Easy flameproof repair
    • Full solid earth connectivity throughout product
    • Full phase to phase segregation with earth
    • Lightest Ex product on the market
  • Accessories

    • Silicone Protection Cover
    • Stainless steel Hanging Plate for Back-to-Back (B2B) receptacles

Technical Information

  • Specs

    Volts 660 to 1,100
    Amps 150
    Receptacle Weight(KG) 7.9
    Plug Weight(KG) 4.1
    Material Stainless Steel

    Download Product Dimensions

    Download Product Solids

    Back

  • Test Results

    Compliant to: AS/NZS 1299:2009
    AS/NZS 60079.0:2012
    AS/NZS 60079.1:2015
    Through Fault Current at 10 minute intervals 12.5kA for 0.2 seconds
    12.5kA for 0.2 seconds
    AC HV Withstand 3.32kV – 4.2kV for 1 minute
    Temperature Rise 150A
