15BU Range | 15,000 Volts | 800 Amp | High Voltage Half Coupler

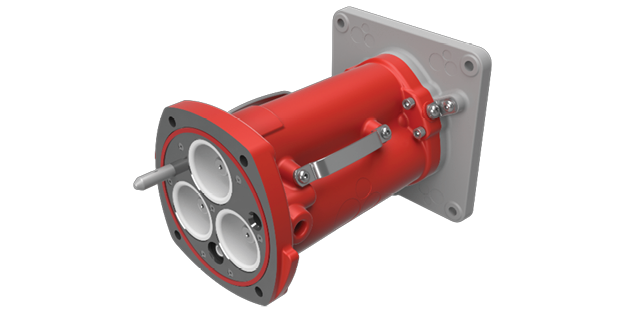

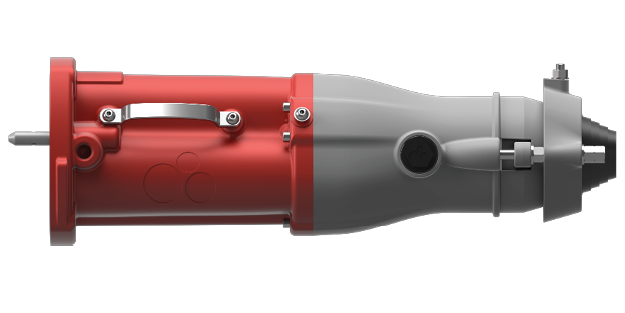

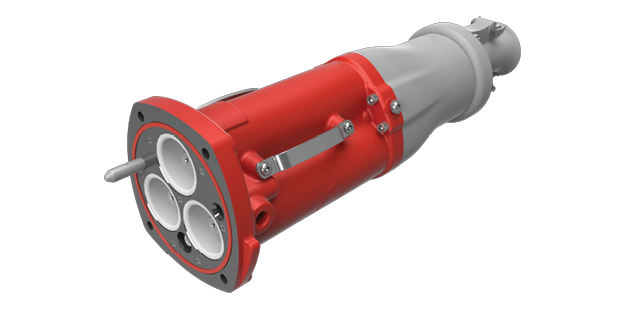

Rated for 800 amps with an operating voltage of 15,000 volts, the design of the 15BU was inspired by the 114BKA 4-Bolt coupler.
In service since 2001, the 15BKA is rated at IP68 and is suitable for use in Non-Ex operational sites such as opencast and metalliferous mining. A design feature of the 15BU, when closing the coupler system the guide pin will become enclosed in the body casting of the coupler, protecting it from external damage.
-
Features
- Less bolts to make a join
- Solid face and body casting
- Silicone Phase Connectors
- Higher mPa Aluminium Material
- Detachable Adaptor Flange
- Earth Pilot Connector
- Handles
- All air expelled on joining

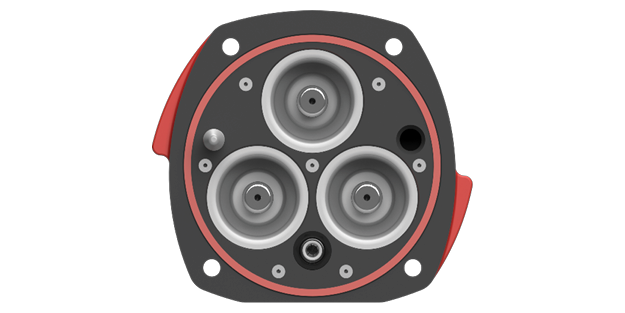

- Silicone seal for face
- Full phase to phase with earth segregation
- Arc extinguishing Phase Insulators
- Genderless design
-
Accessories
- LED Live Line Indicator
- Adaptor – Gear Mount
- Cast Protection Cover
- Silicone Phase Connectors
- Crimp Contacts
- Soldered Contacts
- Gland – Armoured
- Gland – Unarmoured
- Insulated End Cover
- Slide Hammer
- Coupling Tool
- CAT Skid
Technical Information
-
Specs
Volts 15,000 Amp 800 LOA (mm) 685 Weight (KG) 18.5 Material Aluminium Volume (Litres) 4.0 Download 15BU Range Dimensions
Download Type C Adaptor Dimensions
Download Fibre Optic Dimensions
-
Test Results
Referenced to AS/NZS 1300, AS/NZS 1299, C22.2 No 298, AS/NZS 1802, AS/NZS 2802, IEEE 386 and IEEE 404 Through Fault Current (Phase) 3 Tests of 20kA for 0.2 sec
1 Test of 20kA for 1.0 secThrough Fault Current (Earth) 1 Test of 5.01kA for 9.0 seconds AC HV Withstand (Phase) 32.0kV for one minute AC HV Withstand (Pilot) 1.0kV for one minute Temperature Rise 800A Ingress Protection IP68 Impulse Voltage 110kV Partial Discharge < 1 pc
