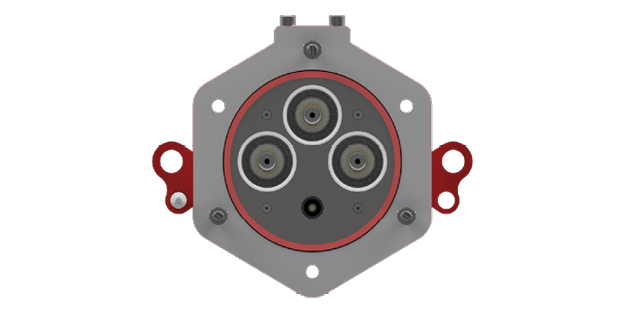

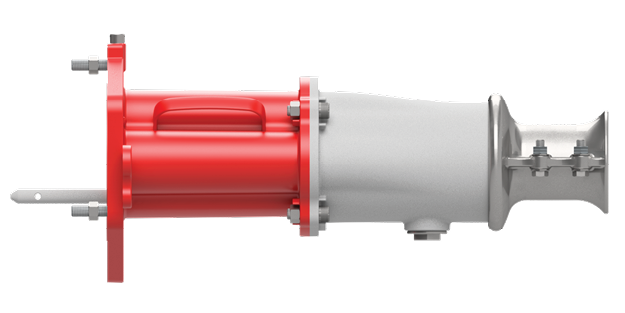

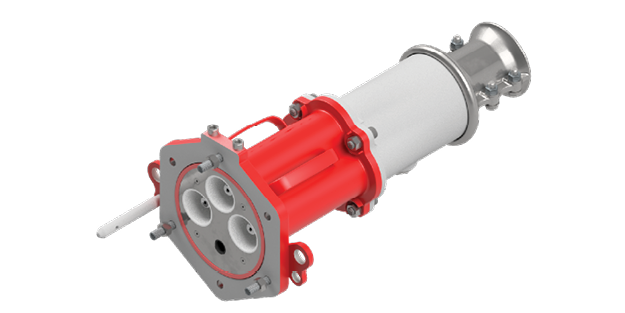

Ex126BSS Range | 12,000 Volts | 400 Amp | Flameproof Couplers

Designed for use in the South African market, the Ex126BSS is rated for 400 amps with an operating voltage of 12,000 volts.

Flameproof certified (SANS 1489), the stainless steel Ex126BSS has an excellent track record in African underground coal mines. Suitable for use in underground mining, tunnelling and commercial applications, including Group 1 hazardous environments, the Ex126BSS can also be used in opencast and metalliferous sites if a higher level of durability is required. Featuring a rugged and compact design, the Ex1126BSS has been developed and tested to SANS 1489 Part 1 and 4 and to SANS 60079 Part 0 and 1, with lightning impulse tests conducted on the Ex1126BSS achieving a 95kV result.

Contact us

  • Features

    • Pilot protection
    • Solid face and body casting
    • Higher MPa Stainless Steel material
    • More resistant to damage on flameproof paths
    • Detachable Adaptor Flange
    • Handles
    • All air expelled on joining
    • Silicone seal for face
    • Full Phase to Phase Segregation with Earth
    • Arc extinguishing Phase Insulators
    • Genderless design

  • Accessories

    • LED Live Line indicator
    • Silicone Phase Connectors
    • Adaptor – Gear Mount
    • Cast Protection Cover
    • Crimp Contacts
    • Soldered Contacts
    • Gland – Armoured
    • Gland – Unarmoured
    • Insulated End Cover
    • Slide Hammer
    • Coupling Tool
    • CAT Skid

Technical Information

  • Specs

    Volts 12,000
    Amp 400
    LOA (mm) 525
    Weight (KG) 22
    Material Stainless steel
    Volume (Litres) 4.0



    Download Product Dimensions
    Back

  • Test Results

    Referenced To SANS 1489
    Through Fault Current at 10 minute intervals 1 Test of 22kA for 0.2 second
    1 Test of 22kA for 1.2 second
    AC HV Withstand 27.4kV for one minute
    Temperature Rise 425 amp for 3.5 hours with stable temperature within percentage of ambient temp
