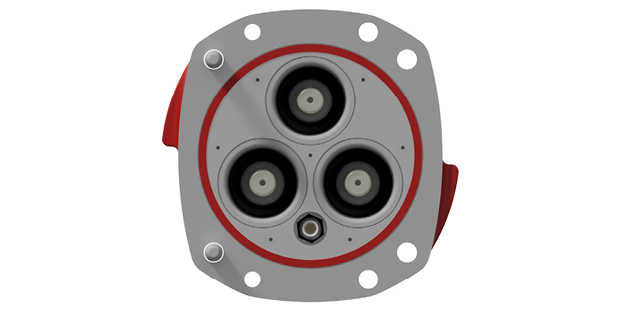

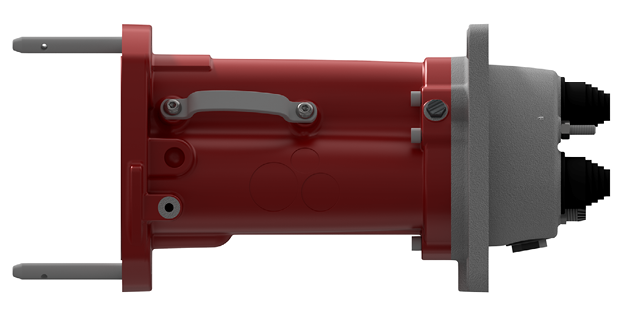

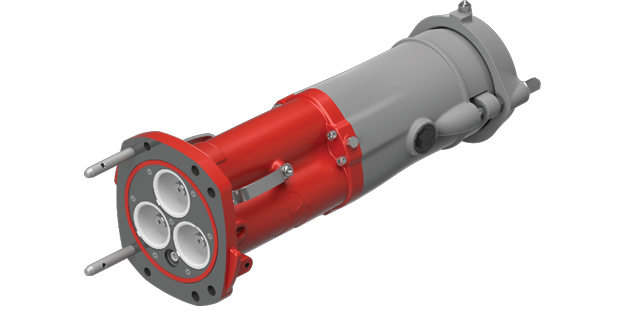

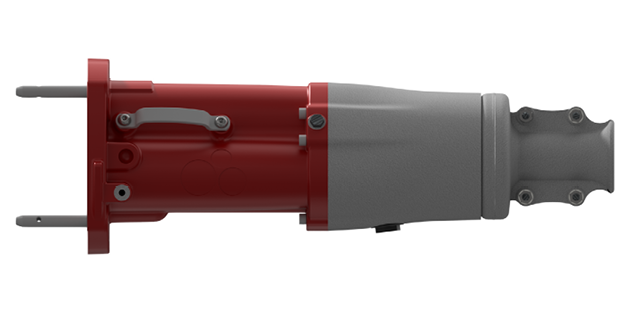

114BKA Range | 11,000 Volts | 800 Amp | 4 Bolt | High Voltage Half Couplers

Rated for 800 amps with an operating voltage of 11,000 volts, the 114BKA has an ingress protection rating of IP68.

In service since 1997, the 114BKA requires just 4 bolts to open and close this coupler system. The use of just four M16 bolts to open and close the coupler system enables increased efficiency of product installation and maintenance, as well as serves to reduce downtime.

Contact us

  • Features

    • IP68 rating
    • Less bolts to make a join
    • Solid face and body casting
    • Silicone Phase Connectors
    • Higher mPa Aluminium material
    • Earth Pilot Connector
    • Handles
    • All air expelled on joining
    • Silicon seal for face
    • Full phase to phase segregation with earth
    • Arc extinguishing Phase Insulators
    • Genderless design

  • Accessories

    • LED Live Line Indicator
    • Adaptor – Gear Mount
    • Silicon Phase Connectors
    • Cast Protection Cover
    • Crimp Contacts
    • Soldered Contacts
    • Gland – Armoured
    • Gland – Unarmoured
    • Insulated End Cover
    • Slide Hammer
    • Coupling Tool
    • CAT Skid

Technical Information

  • Specs

    Volts 11,000
    Amp 800
    LOA (mm) 690
    Weight (KG) 18.5
    Material Aluminium
    Volume (Litres) 4.0



    Download Product Dimensions

    Download Test Report

    Download Product Solids

    Back

  • Test Results

    Referenced to AS/NZS 1300, AS/NZS 1299, C22.2 No 298, AS/NZS 1802, AS/NZS 2802, IEEE 386 and IEEE 404
    Through Fault Current (Phase) 3 Tests of 20.0kA for 0.2 sec
    1 Test of 20.0kA for 1.0 sec
    Through Fault Current (Earth) 1 Test of 5.01kA for 9.0 seconds
    AC HV Withstand (Phase) 24.0kV for one minute
    AC HV Withstand (Pilot) 1.0kV for one minute
    Temperature Rise 800A
    Ingress Protection IP68
    Impulse Voltage 110kV
    Partial Discharge < 1 pc
