35BU Range | 35,000 Volts | 800 Amp | High Voltage Half Coupler

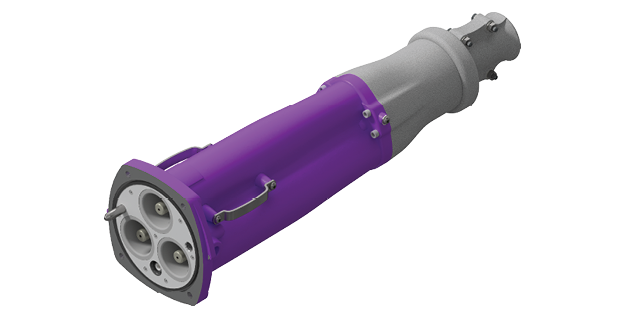

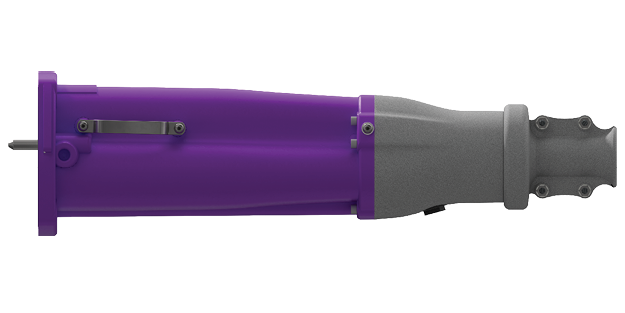

Exclusive to KonNx, the 35kV aluminium high voltage coupler is the only coupler in the world capable of withstanding 35,000 volts.
Developed in a staggering 15 weeks, the 35BU was released in 2013 after being approached by a client unable to find a product suitable on the market to meet their needs. Currently installed in four opencast mines across Africa, the 35BU has also been installed in high altitude mines in South America without issue. The results of type tests performed on this coupler prove that its high quality design is as good as the cable, with common applications including supply of power from overhead lines to mobile transformers, as well as supplying power to dredges.

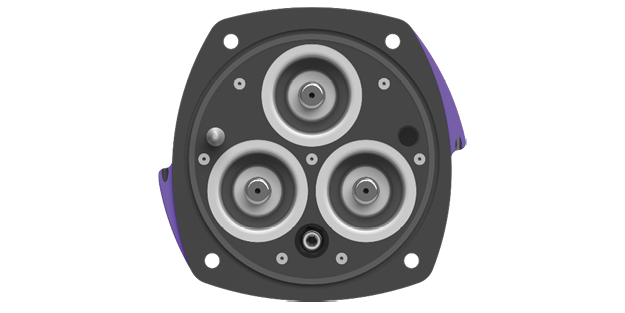

The 35BU features a guide pin that will become enclosed in the body casting of the coupler when the system is closed, protecting it from external damage. Proper installation, maintenance, and ongoing support for the 35BU can be provided by sister company KableX Africa.
-
Features
- Earth Pilot Connector
- Solid face and body casting
- Silicone Phase Connectors
- Higher mPa Aluminium Material
- Detachable Adaptor Flange
- Handles
- All air expelled on joining
- Silicone seal for face
- Full phase to phase segregation with earth
- Arc extinguishing Phase Insulators
- Genderless design
-
Accessories
- LED Live Line Indicator
- Adaptor – Gear Mount
- Cast Protection Cover
- Silicone Phase Connectors
- Crimp Contacts
- Soldered Contacts
- Gland – Armoured
- Gland – Unarmoured
- Insulated End Cover
- Slide Hammer
- Coupling Tool
- CAT Skid
Technical Information
-
Specs
Volts 35,000 Amp 800 LOA (mm) 895 Weight (KG) 24.5 Material Aluminium Volume (Litres) 6.0 -
Test Results
Referenced to AS/NZS 1300, AS/NZS 1299 C22.2 No 298, IEEE 386 Through Fault Current (Phase) – Through Fault Current (Earth) – AC HV Withstand (Phase) 72.0kV for one minute AC HV Withstand (Pilot) 1.0kV for one minute Temperature Rise 800A Ingress Protection – Impulse Voltage 200kV Partial Discharge < 3 pc
