Ex124BSSRF Range | 12,000 Volts | 400 Amp | Flameproof Couplers

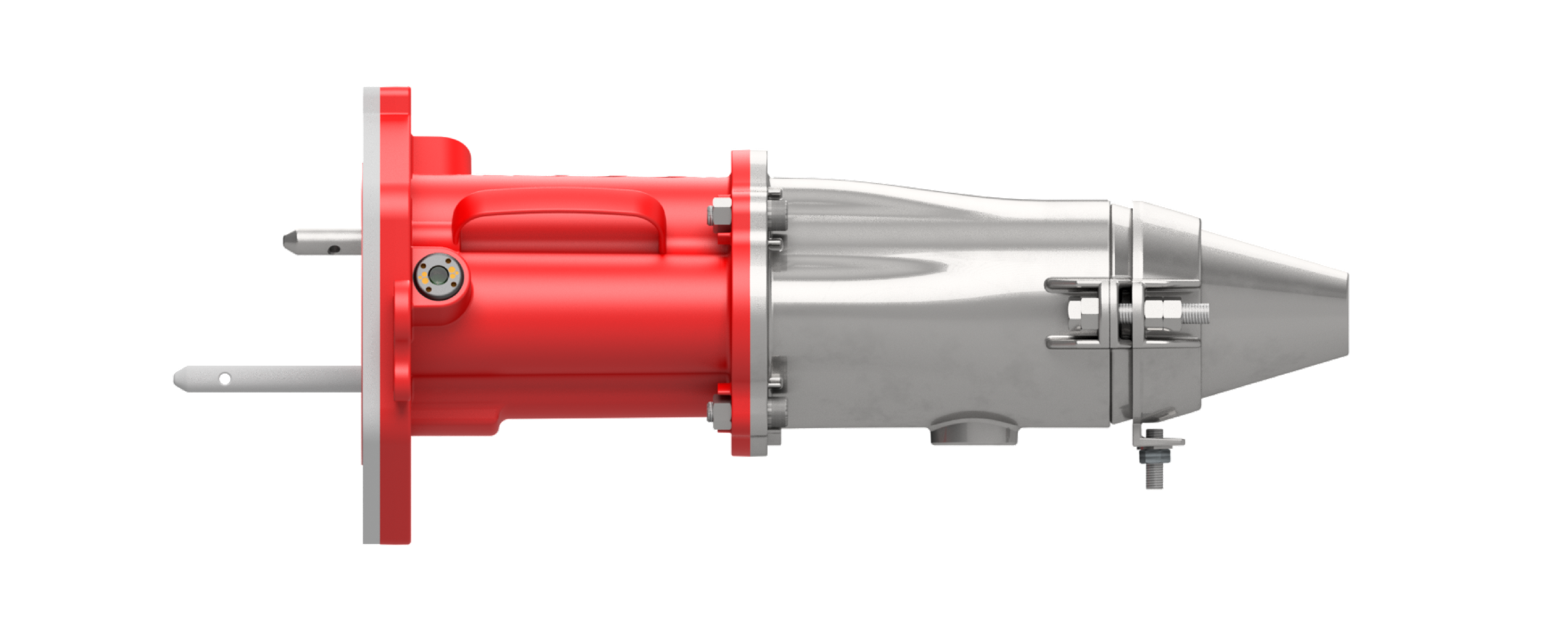

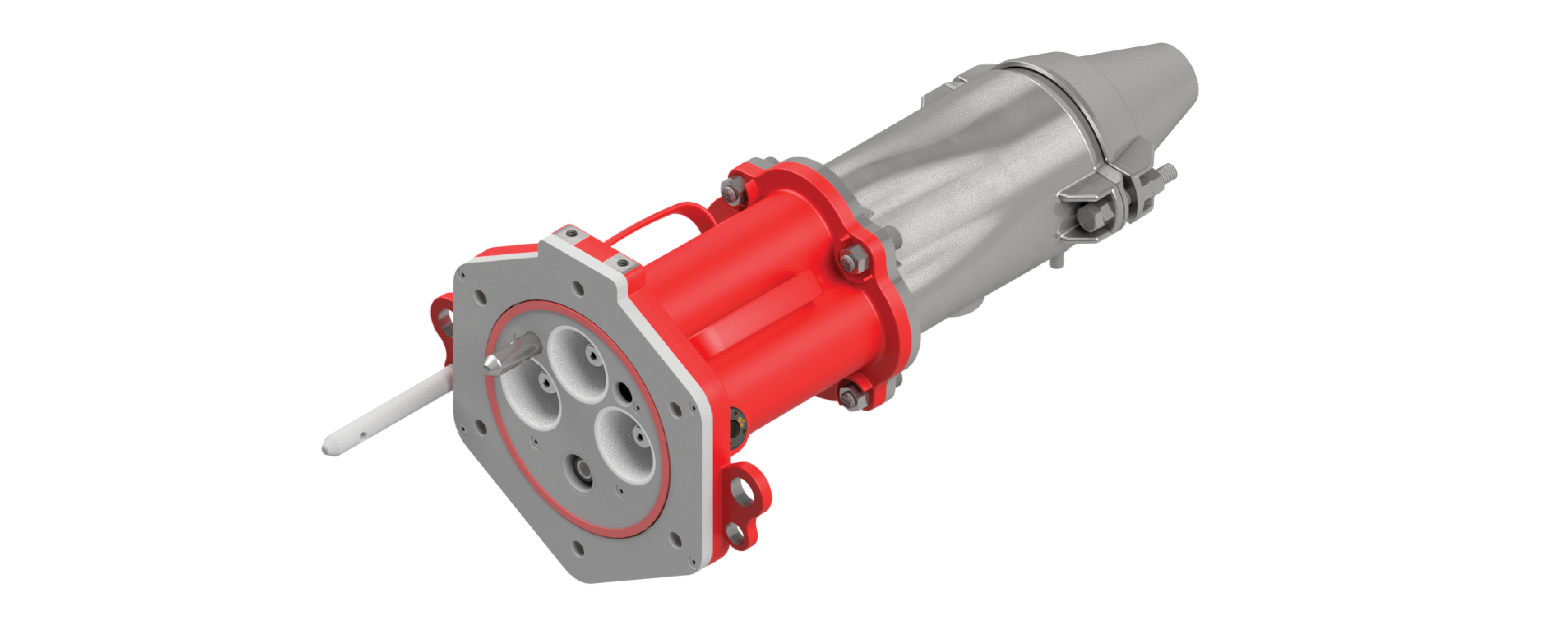

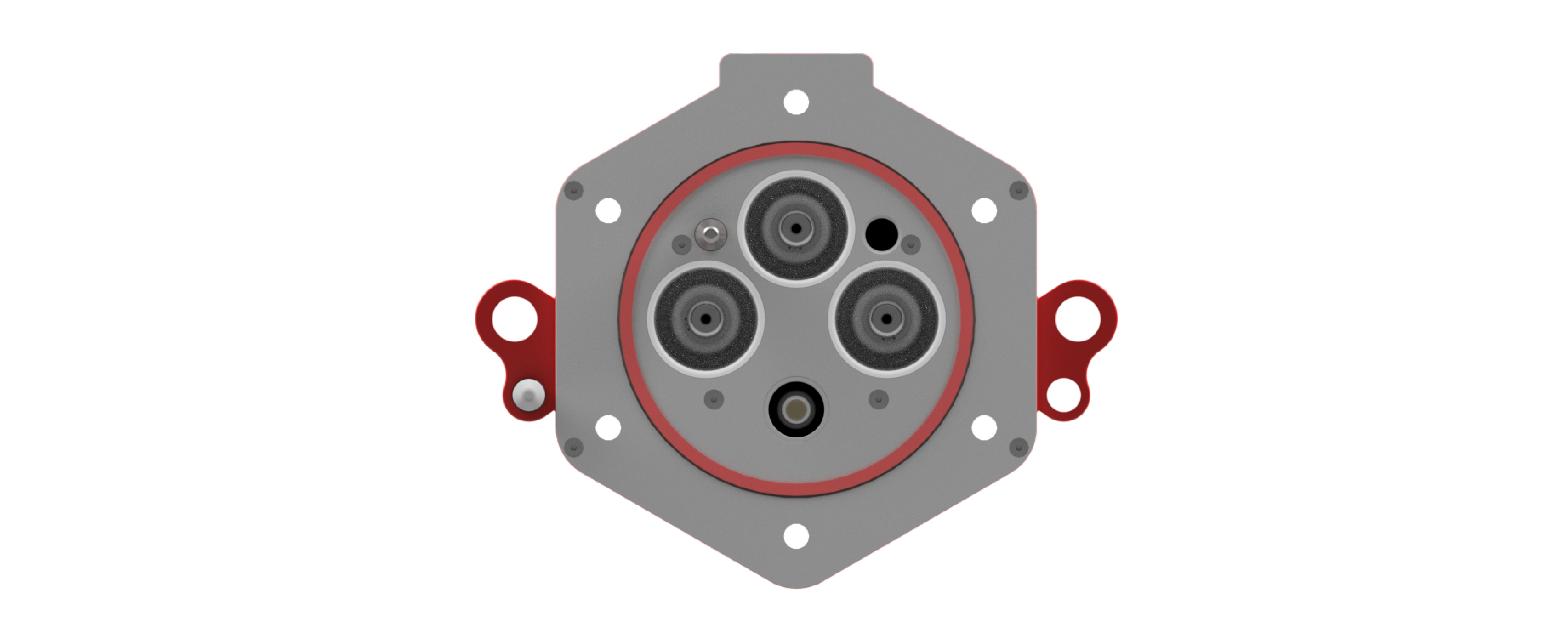

Designed for use in the South African market, this 6-bolt 12kV stainless steel half coupler has recently been redesigned to include a new feature aimed at reducing downtime.

Flameproof certified (SANS 1489), as of 2024 the Ex124BSS, which held an excellent track record in African underground coal mines, has been upgraded to the Ex124BSSRF. The RF stands for Removable Flange, a new feature for this half coupler aimed at removing the guesswork from flamepath maintenance and reducing downtime. Should flamepath damage occur, simply remove and replace the flange. This maintenance can be done on-site, even underground. The Removable Flange can also be ordered separately at a fraction of the cost of replacing an entire coupler and kept on hand, further assisting in the reduction of downtime and maintenance costs.

Suitable for use in underground mining, tunnelling and commercial applications, including Group 1 hazardous environments, the Ex126BSSRF can also be used in opencast and metalliferous sites if a higher level of durability is required. Maintaining its original rugged and compact design, our LED Live Line indicator has also been redesigned to be flush with the coupler for easier cleaning and maintenance.

Contact Us

  • Features

    • LED Live Line Indicator
    • Pilot protection
    • Solid face and body casting
    • Silicone Phase Connectors
    • Higher mPa Stainless Steel material
    • Internal Guide Pin
    • Option for Earth Pilot Connector
    • Detachable Adaptor Flange
    • Handles
    • All air expelled on joining
    • Silicone seal for face
    • Full phase to phase segregation with earth
    • Arc extinguishing Phase Insulators
    • Genderless design

  • Accessories

    • Silicone Phase Connectors
    • Adaptor – Gear Mount
    • Cast Protection Cover
    • Crimp Contacts
    • Soldered Contacts
    • Gland – Armoured
    • Gland – Unarmoured
    • Insulated End Cover
    • Slide Hammer
    • Coupling Tool
    • CAT Skid

Technical Information

  • Specs

    Volts 12,000
    Amp 400
    LOA (mm) 525
    Weight (KG) 22
    Material Stainless steel
    Volume (Litres) 4.0



    Download Product Dimensions

    Back

  • Test Results

    Compliant to IEC 60079-0, IEC 60079-1 and SANS 1489
    Through Fault Current (Phase) 29.28kA for 1.0s (Symmetric)
    58.56kA for 0.2s (Asymmetric)
    Through Fault Current (Earth) 8.0kA for 0.2s
    AC HV Withstand (Phase) 24.0kV for one minute
    AC HV Withstand (Pilot) 2.0kV for one minute
    Temperature Rise 400A
    Ingress Protection IP65
    Impulse Voltage 75kV
    95kV
    Partial Discharge < 1 pc
