Aluminium High Voltage Range
Suitable for use in Non-Ex metalliferous and open-cut mining, as well as pumping and tunnelling projects, KonNx Africa’s high voltage aluminium range offer a variety of safe and high quality cable coupler solutions in order to assist your site meet its operational needs.
Also known as ‘open-cut couplers’, the half couplers available in this range include:

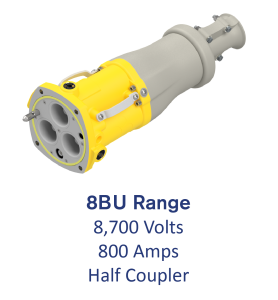

- the 8BU, with a current carrying capacity of 8,700 volts and rated to 800 amps;

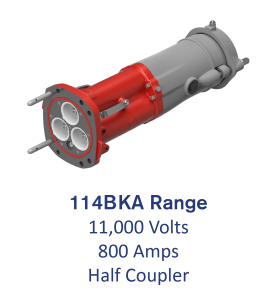

- the 114BKA, with a current carrying capacity of 11,000 volts and rated to 800 amps;
- the 15BU, with a current carrying capacity of 15,000 volts and rated to 800 amps;

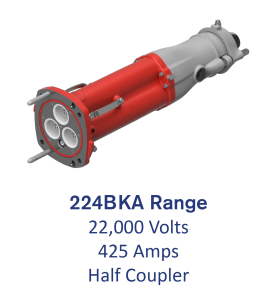

- the 224BKA, with a current carrying capacity of 22,000 volts and rated to 425 amps;
- the 25BU, with a current carrying capacity of 25,000 volts and rated to 800 amps; and

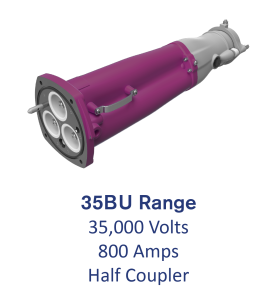

- the 35BU, the world’s first and only coupler with a current carrying capacity of 35,000V, rated to 800 amps.
A number of compatible accessories are available for products within this range, including gear mount adaptors, crimp contacts, armoured and unarmoured glands, and KonNx Africa’s CAT Skid.
As of mid-2022, all of KonNx Africa’s aluminium half couplers now dispatch with our battery-free LED Live Line Indicator as a standard feature. Developed using modern LED technology, the use of LED’s allows the Live Line Indicator to be seen even in the bright daylight of open-air operational sites. Redesigned in early 2024, the LED Live Line Indicator is now flush with the coupler for easier cleaning and maintenance.
Safety is our number one priority, our goal being to provide those working with high voltages peace of mind with safe, high quality power supply solutions. The design of the half couplers within this range provide even greater earth connectivity and pilot control. Additional features of KonNx Africa’s aluminium half couplers include:
- Full phase to earth segregation with earth;
- High mPa aluminium material;
- Earth pilot connectors; and
- Silicone seal for face.
Further information on these products, including product dimensions and solids, can also be accessed by clicking the relevant image below. Please don’t hesitate to get in touch if you’d like access to a specific product test report, or to discuss how our aluminium half couplers could work for your site.
